Digital Video

4K/HD/SD Decoder
HC10000DS/HC11000DS

High Performance and Reliable 10bit 4:2:2 HEVC, H.264/AVC, and MPEG-2 Decoder.

product image

Key features

  • Supports 10bit 4:2:2/4:2:0 for HD/SD, 4K
  • Multiple video formats supported;
    H.265/HEVC, H.264/MPEG-4 AVC, and MPEG-2 Video
  • Supports Super Low Latency
  • Embedded Audio up to 16ch/8PES combinations
  • Dolby Digital Pass-through
  • Ancillary Data transmission
  • BISS-1/E and BISS-2/CA supported
  • 12G-SDI Output OP
  • AES/EBU Audio Output OP (HC11000DS)
  • GENLOCK
  • Multicast/Unicast of both IPv4 and IPv6 with FEC, ARQ
  • Provides robust "Seamless Protection of two Streams"
  • Two each Ethernet ports for GUI control and for streaming data
  • Dual power supply units for redundancy (HC11000DS)

OP is option. Please refer to the option table.

Application

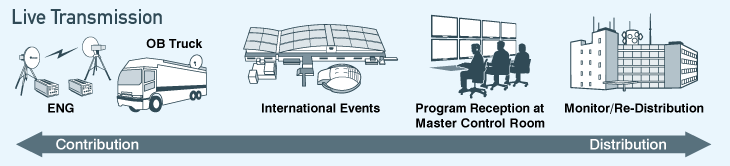

 application image

Front/Rear Panel

HC10000DS (1RU Half) : Front panel

HC10000D image

HC11000DS (1RU Full) : Front panel

HC11000D image

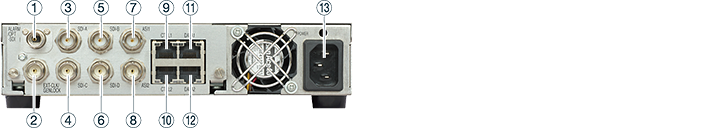

HC10000DS (1RU Half) : Rear panel

Rear panel image

  1. 12G-SDI-OUT OP4
  2. GENLOCK
  1. SDI-A
  2. SDI-C
  3. SDI-B
  4. SDI-D
  1. ASI1
  2. ASI2
  3. CTRL1
  4. CTRL2
  1. DATA1
  2. DATA2
  3. AC inlet

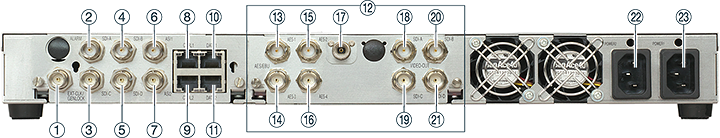

HC11000DS (1RU Full) : Rear panel

Rear panel image

  1. GENLOCK
  2. SDI-A
  3. SDI-C
  4. SDI-B
  5. SDI-D
  1. ASI1
  2. ASI2
  3. CTRL1
  4. CTRL2
  1. DATA1
  2. DATA2
  3. Option Slot
Option Board

13 14 15 16 18 19 20 21 :
Digital Audio Output Board OP1

13 14 15 16 17 18 19 20 21 :
12G-SDI/AES Output Board OP5

  1. AES/EBU1
  2. AES/EBU3
  3. AES/EBU2
  4. AES/EBU4
  1. 12G-SDI-OUT
  2. SDI-A
  3. SDI-C
  4. SDI-B
  5. SDI-D
  1. AC inlet2
  2. AC inlet1

Specifications

Video

Output Interface BNC: 12G-SDI(SMPTE ST 2082-1)/3G-SDI(SMPTE ST 424)/HD-SDI(SMPTE ST 292)/SD-SDI(SMPTE ST 259)
Decode Method H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2 Video
Profile ; Level

(Please see below for supported formats.)

H.265 / HEVC Profile: Main 4:2:2 10, Main 10, Main
Level: 5.1, 4.1, 4
H.264 / MPEG-4 AVC Profile: High 4:2:2(10bit), High10, High, Main
Level: 4.2, 4.1, 4.0, 3.2, 3.0
MPEG-2 Video Profile: 422P, Main
Level: High, Main
Video Format @ Frame Rate H.265 / HEVC 2160P(3840x2160)@23.98Hz, 29.97Hz, 50Hz, 59.94Hz
1080P(1920/1440x1080)@23.98Hz, 29.97Hz, 50Hz, 59.94Hz
1080I(1920/1440x1080)@25Hz, 29.97Hz
720P(1280x720)@50Hz, 59.94Hz
576I(720x576)@25Hz
480I(720x480)@29.97Hz
H.264 / MPEG-4 AVC 1080P(1920/1440x1080) * @23.98Hz, 29.97Hz
1080I(1920/1440x1080)@25Hz, 29.97Hz
720P(1280x720)@50Hz, 59.94Hz
576I(720x576)@25Hz
480I(720x480)@29.97Hz
MPEG-2 Video 1080I(1920/1440x1080)@25Hz *, 29.97Hz
720P(1280x720)@50Hz, 59.94Hz
576I(720x576)@25Hz
480I(720x480)@29.97Hz

Audio

Output Interface Embedded Audio 16ch(SMPTE ST 299, SMPTE ST 272), AES/EBU 8ch OP1
Decode Audio Type MPEG-1 L2 : 1ch(Mono), 2ch(Dual Mono), 2ch(Stereo); max. 8PES
MPEG-2 AAC-LC : 1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1), 6ch(2/2/2); max. 4PES
MPEG-4 AAC-LC : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1); max. 4PES
MPEG-4 HE-AACv1 : 2ch(2/0), 5.1ch(3/2/1); max. 2PES
MPEG-4 AAC-ELD : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1); max. 2PES
SMPTE ST 302 : 2, 4, 6, 8ch ; max. 4PES
Dolby Digital Pass Through ; max. 6PES

Ancillary

Data Type TIMECODE, ARIB-TR-B22/B23, SMPTE2038

Transport Stream(TS)

Input Interface DVB-ASI : BNC x 1 (0.8Vp-p 75Ω)
IP : 100BASE-TX/1000BASE-T x 2 (RJ-45)
Input Type MPEG-2 TS(188/204byte); For IP: Time-stamped TS(TTS)(192byte), Advanced TS(192byte)
Maximum TS Rate 200.000Mbps
TS Decryption BISS-2 1/E/CAOP7OP8, BISS-1/EOP2OP7

Network

Interface DATA1 : 100BASE-TX/1000BASE-T(RJ-45)
DATA2 : 100BASE-TX/1000BASE-T(RJ-45)
Transmission RTP/UDP/IP(SMPTE ST 2022-2:2007, RFC2250, RFC3550, RFC1889), Unicast/Multicast
Network Features IPv4 : IGMPv2/v3, NTP, DHCP, Ping, Syslog, PPPoE
IPv6 : MLDv2, Ping, Syslog, IPoE
Error Correction FEC(SMPTE ST 2022-1:2007/Pro-MPEG COP#3 R2), ARQ
Others Seamless Protection OP3



Control

Local Control LCD (20digits x 4/brightness control available) + Front Switch (7 buttons)
Remote Control WEB GUI, SNMP v1, Ping, Syslog

Others

Dimensions
HC10000DS :
W:209 x H:44 x D:430 (mm) (w/o Connector, Foot, Rack mount bracket)
HC11000DS :
W:432 x H:44 x D:430 (mm) (w/o Connector, Foot, Rack mount bracket)
Weight HC10000DS : 5kg typ.
HC11000DS : 8kg typ. (w/o option card)
Supply Voltage AC100V to 240V, 50/60Hz
HC10000DS : Single power supply
HC11000DS : Dual power supply for redundancy
Power Consumption HC10000DS : 100W max.
HC11000DS : 150W max.
Operating Environment 0 to 45℃, 30 to 90% (non condensing)
Compliance RoHS, VCCI, FCC, ICES, CE, UL, CSA

Option

  Suffix Option Name Description
Hardware OP1 HC11000_OP_AES Digital Audio Output Board (Factory Option)
OP4 HC10000D_OP_12G 12G-SDI Output (Factory Option)
OP5 HC11000D_OP_AES-12G 12G-SDI/AES Output Board (Factory Option)
Software OP2 HC1x000D_OP_BISS BISS Decryption
OP3 HC1x000D_OP_SEAMLESS Seamless Protection
OP7 HC1x000D_OP_BISS2UG BISS-2 Upgrade for the kit installed BISS-1
OP8 HC1x000D_OP_BISS1+2 BISS-1 and BISS-2 Decryption

* will be available in the future release. Please contact us for details.
This Specifications include paid optional features.

Go to Key features

Go to Application

Go to Front/Rear Panel

Go to top of the Specifications
