4:2:2 10bit H.264/AVC and MPEG-2 Decoder
HVD9130
High Performance and Reliable 10bit 4:2:2 H.264/AVC & MPEG-2 Decoder
HVD9130 performs low latency and compressed video transmission with NTT Innovative Devices' High End Encoder family.
In addition, it supports 4k transmission with multiple units(4 units) and can decode completely synchronized 4k contents without an external synchronizer.
Inquiries about Digital Video System Solutions
Download DatasheetKey features
- Supports 10bit 4:2:2 H.264/AVC and MPEG-2 Decoding
- Low Latency Mode (Minimum Latency 1 Frame) with HVE9110, HVE9200, HVE9210, HVE9230, XVE9310 combination (with HVE9100 : 3 Frames)
* H.264/AVC only * Encoder optional - Compressed Audio for Super Low Latency (optional * 9 )
- Multiple video format compatibility including
1080i, 1080p, 720p, 576i, 480i
1080p50 (optional * 4 ), 1080p59.94 (optional * 4 ), 1080p60(optional * 4 ) - Phase Aligned Audio
- Embedded audio features up to 16ch/8PES (optional * 1 )
- Multiple audio format support up to 16ch/8PES combinations (optional *1 )
- MPEG-1 LayerII: Stereo x 8
- MPEG-2 AAC/MPEG-4 AAC/HE-AAC (5.1 + Stereo) x 2
- Analog Audio output (optional *15)
- Closed Caption: CEA-608, CEA-708
- Cascade Connection with Multiple Units for 3D and 4K decoding
- Auto signal Synchronization for 3D and 4K decoding (optional * 8 )
- Ancillary Data Transmission Support : Time Code, SMPTE RDD11, SMPTE2038, ARIB TR-B22, TR-B23
- Redundant IP input x 2
- Seamless Protection Switching for IP input (optional *10 )
- Redundant power supply
Front/Rear Panel

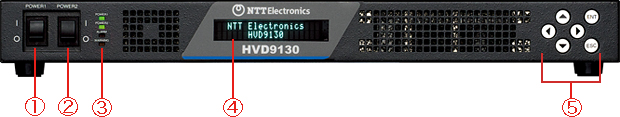

Front panel
- Power switch 1
- Power switch 2
- Status LEDs
- Display panel
- Operation buttons

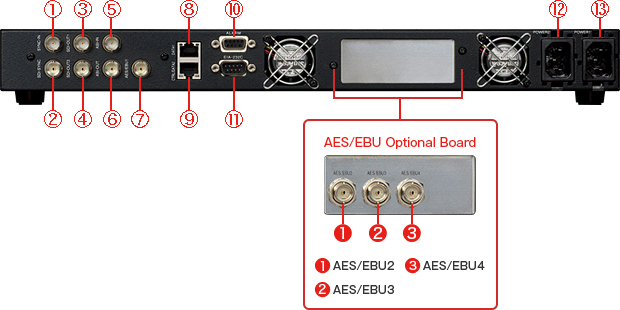

Rear panel
- SYNC-IN
- SDI-SYNC
- SDI-OUT1
- SDI-OUT2
- ASI-IN
- ASI-OUT
- AES/EBU1
- DATA1
- CTRL/DATA2
- ALARM
- EIA-232C
- AC inlet 2
- AC inlet 1
Specifications
Decoder Specifications
| Supported Standards |
System | ISO/IEC13818-1(MPEG-2 SYSTEM TRANSPORT STREAM) | |
|---|---|---|---|
| Video | ITU-T H.264 | ISO/IEC 14496-10 AVC ITU-T H.262 | ISO/IEC 13818-2 MPEG-2 Video |
||
| Audio | ISO/IEC11172-3 (MPEG-1 AUDIO LayerⅡ) ISO/IEC13818-7 (MPEG-2 AAC) LC Profile ISO/IEC14496-3 subpart 4 (MPEG-4 AAC)LC Profile * 3 ISO/IEC14496-3 Amendment 1 (MPEG-4 HE-AAC v1) * 3 ISO/IEC14496-5:2001 Amendment 24:2009 (MPEG-4 AAC-ELD) * 9 SMPTE302M-2002 |
||
| Video Specifications |
Video Format |
1080I(1920/1440/1280/960x1080)@25Hz, 29.97Hz, 30Hz: SMPTE274M 1080P(1920/1440/1280/960x1080)@23.98Hz, 24Hz: SMPTE274M 1080P(1920/1440/1280/960x1080)@29.97Hz, 30Hz: SMPTE274M 1080P(1920/1440/1280/960x1080)@50Hz, 59.94Hz, 60Hz : SMPTE274M * 4 *H.264 Only 720P(1280x720) @50Hz, 59.94Hz, 60Hz: SMPTE296M 480I(720/352x480) @29.97Hz: SMPTE125M 576I(720/352x576) @25Hz: ITU-R BT.656-4 |
|
| Profile / Level |
H.264/AVC | Profile: Main, High, High4:2:2 (10bit) Level: 4.2 / 4.1/ 4.0 / 3.2 / 3.1 / 3.0 Entropy: CABAC/CAVLC |
|
| MPEG-2 | MP@HL, 422P@HL, MP@ML, 422P@ML | ||
| Video Output |
SMPTE424M/SMPTE292M/SMPTE259M BNC x 2lines (0.8Vp-p 75Ω) | ||
| Audio Specifications |
Audio Output |
AES/EBU (2ch + 6ch * 2 ) : BNC x 1 + 3 * 2 lines (1Vp-p 75Ω) Embedded Audio: SMPTE424M, SMPTE299M, SMPTE272M ANALOG(4ch): D-SUB 15Pin (50Ω, balanced) *12 |
|
| Decoding Channels |
AES max. 8ch, Embedded max. 16ch *1 | ||
| Decoding Method |
MPEG-1 L2(1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES (8PES * 1 ) MPEG-2 BC(1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES (8PES * 1 ) MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(3/1), 4ch(2/2), 4ch(4/0), 5.1ch(3/2/1), 6ch(6/0), 6ch(6x1)) max. 2PES (4PES * 1 ) MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 2PES (4PES * 1 ) MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 2PES (4PES * 1 ) SMPTE302M (2, 4, 6, 8 ch) max. 4PES (8PES * 1 ) MPEG-4 AAC-ELD(2ch(2/0), 4ch(3/1), 5.1ch(3/2/1)) max. 4PES *9 |
||
| Sampling Frequency | 48kHz | ||
| Sampling Bit |
16bit (MPEG-1, MPEG-2 BC, MPEG-2/4 AAC, MPEG-4 HE-AAC), 16/20bit (SMPTE302M) | ||
| Bitrate | 128/192kbps (MPEG-1, MPEG-2 BC 1ch) 128/192/256/384 kbps (MPEG-1, MPEG-2 BC 2ch) 128/192/256/320/384 kbps (MPEG-2/4 AAC-LC 1ch, 2ch) 320/384/480/512/640 kbps (MPEG-2/4 AAC-LC 4ch, 5.1ch, 6ch) 64/96/128 kbps (MPEG-4 HE-AAC 2ch) * 3 128/192/256 kbps (MPEG-4 HE-AAC 5.1ch) * 3 |
||
| Pass Through |
Dolby E external decoder delay absorption function (0 to 1 frame) | ||
| Ancillary Data | Data Type | TIMECODE, SMPTE334M, SMPTE2038, ATSC A/53, ATSC A/72, OP-47, ARIB TR-B22, TR-B23 | |
| TS Specifications |
Input Interface |
DVB-ASI: BNC x 1 lines (0.8Vp-p 75Ω) | |
| IP * 7 : 100Base-TX/1000Base-T (RJ-45) x 2 line(Category 5/5e/6) RTP/UDP/IP (SMPTE2022-2-2007/RFC2250, RFC3550), FEC (SMPTE2022-1-2007/Pro-MPEG COP#3 R2 method) |
|||
| Stream Type |
TS (188/204byte: No Reed-Solomon) | ||
| Max. Multiplicity |
Video: 1, Audio max. 4 + Ancillary Data max. 3 (Audio + Ancillary Total max. 5) Video: 1, Audio max. 8 + Ancillary Data max. 3 (Audio + Ancillary Total max.11) * 1 |
||
| Maximum TS Rate |
160.0000Mbps | ||
| Other | Seamless Protection *10 , TS Pass Through *11 | ||
| Control Specifications |
Local Control |
FL display (20 digits x 2) + operator switches (6 buttons) | |
| Remote Control |
LAN 100Base-TX/1000Base-T (RJ-45) | ||
| Maintenance I/O |
LAN 100Base-TX/1000Base-T (RJ-45) (joint use with remote control) |
||
| Alarm Output |
Buzzer (volume adjustable), relay contact outputs (2 NO/NC contacts) | ||
| External Reset |
System reset by relay contact input (1 NO contact) | ||
| Device Monitor Control |
SNMPv1, WEB Based GUI | ||
|
Other |
TS Descramble |
BISS-1/E * 6 | |
| Dimensions (mm) |
44(H) x 432(W) x 460(D) (w/o Connector, Foot, Rack mount bracket) | ||
| Weight (typical) |
6kg (w/o option card) | ||
| Power Source |
AC100V to 240V, 50/60Hz | ||
| Power Consumption | 50W max. | ||
| Operating Environment | 0 to 45℃, 30 to 90% (condensation not allowed) | ||
| RoHS Compliant | This product is RoHS compliant | ||
Option Table (Hardware)
- *1
- HD9_OP_AudioModule
Additional audio module for 8PES Audio - *2
- HD9_OP_AESEBU
AES/EBU 6ch
- *12
- HD9_OP_ANALOG
Analog Audio 4ch
Option Table (Software)
- *3
- HD9_OP_HEAAC
HE-AAC, MPEG-4 AAC - *4
- HD9_OP_60P
1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97 - *6
- HD9_OP_BISS
BISS - *7
- HD9_OP_GIP
TS over IP (1000BASE-T)
- *8
- HD9_OP_4k
4K Cascade Connection - *9
- HD9_OP_AACELD
Compressed Audio for Super Low Latency - *10
- HD9_OP_SEAMLESS
Seamless Protection - *11
- HD9_OP_IPOUT
TS over IP Output(1000BASE-T)
Please ask our sales about hardware options *2
Caution
Please use our products in accordance with the instructions provided in the manual, user's guide or specifications attached.
- Dolby is a trademark of Dolby Laboratories.
- Our company may change specifications and the appearance for improvement that are incidental to the product without providing prior notice. At the purchase and the use of the product, please confirm the latest information.
- Exporting our products or technologies may be subject to the Foreign Exchange and Foreign Trade Law of Japan and export control acts and regulations of other related countries.
