4K/8K Uncompressed Video Optical Transmission Equipment
Next Generation Technology Promoting Remote Production and Video Contribution
The integration of an optical transponder capable of long-distance and large-capacity communication and uncompressed video functionality achieves 4K/8K transmission with no quality degradation and quasi-zero latency.
Inquiries about Digital Video System SolutionsKey features
- High Space Efficiency
One box includes optical transponder, L2/L3 routing, and 4K/8K Media over IP functionalities. - Long Haul, Large Capacity Optical Communication
A high-performance optical communication module with optical coherent technology implemented realizes large-capacity uncompressed video transmission over long distances. - Uncompressed 4K/8K Video Transmission
A video plug-in unit (VideoPIU) that converts SDI signals to SMPTE ST 2110 streams enables the transmission of 4K x 4ch or 8K x 1ch uncompressed video feed. - L2/L3 Routing
The adoption of a white box packet transponder achieves optical transponder and L2/L3 routing functionalities. - Flexible Configuration
Up to four modules can be inserted into PIU slots, expanding flexibility in configuration. For example, the combination of two sets of VideoPIUs and two sets of optical coherent modules enables long-distance optical communication of 4K x 8ch with a redundant path. - Other Functionalities
PTP synchronization (SMPTE ST2059)
NMOS IS-04/05 for monitoring and control purposes.
Appearance

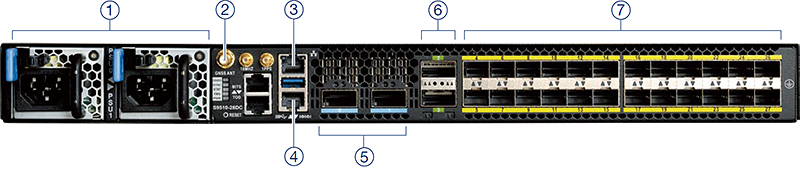

Front panel
- PIU#1 (Blank)
- PIU#2 (Coherent PIU Module+ CFP2-ACOTransceiver)
- Client port QSFP28 x 12ports
- Out Band Management port
- USB
- Control port
- PIU#3 (Video PIU Module)
- PIU#4 (Blank)

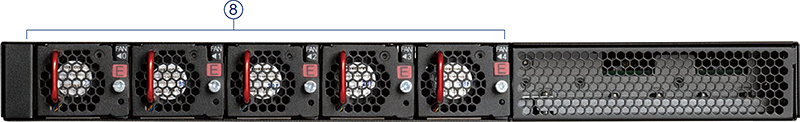

Rear panel
- PSU#2
- FAN#5
- FAN#4
- FAN#3
- FAN#2
- FAN#1
- PSU#1
Specifications
Chassis (White Box Packet Transponder)
| Interfaces | Plug-in unit (PIU) module slot x 4, QSFP28 100GbE port x 12 |
|---|---|
| Dimensions | 1RU W:445 x H:44 x D:550 (mm) (w/o Connector, Foot, Rack mount bracket) |
| Weight | 8.2kg typ. |
| Supply Voltage | AC100 - 240VAC, 50/60Hz (Hot-swappable dual power supply) |
| Power Consumption | 800W max. |
| Operating Environment | -10 - +45℃, 10 - 95% (non-condensing) |
| Compliance | RoHS, VCCI, CE, FCC, BSMI, CB, LVD, UL/cUL |
Plug-in Unit (PIU)
Coherent PIU Module (CFP2-ACO PIU) + CFP2-ACO Transceiver
| Fiber Type | SMF/DMF |
|---|---|
| Modulation Method | 100G DP-QPSK / 200 DP-16QAM |
| Data Rate | 100Gbps / 200Gbps (Depending on the modulation method) |
| Operation Wavelength | Full C-band tunable |
Video PIU Module* 1
| Connector | SDI : HD-BNC (Fe) x 4, BB : HD-BNC (Fe) x 1 |
|---|---|
| SDI | Quad Link 12G-SDI (SMPTE ST 2082-12) x 1 / 12G-SDI (SMPTE ST 2082-1) x 4 / 3G-SDI (SMPTE ST 424) x 4 (Only Level A) / HD-SDI (SMPTE ST 292) x 4 (* You can choose an operation mode. You cannot use different SDI types simultaneously) |
| Video | 4320P(7680 x 4320)@50Hz, 59.94Hz, 100Hz, 119.88Hz / 2160P(3840 x 2160)@50Hz, 59.94Hz / 1080P(1920 x 1080)@50Hz, 59.94Hz / 1080I(1920 x 1080)@25Hz, 29.97Hz (* 100Hz and 119.88Hz require two Video PIU modules. You cannot use different formats simultaneously) |
| Audio | SDI Embedded Audio 32ch (SMPTE299M) |
| Ancillary Data | Ancillary Data (SMPTE ST 291-1) |
| IP | SMPTE ST 2110. SMPTE ST 2059-1/2 PTP slave function supported. SMPTE ST2022-7 Class C (<200ms), IPv4, Multicast/Unicast (Multicast only for PTP), IGMPv3 (Include mode) supported |
| Control | NMOS IS-04, IS-05 / Original Console (CLI) |
*1 You use either Encap mode or Decap mode.
