CODE-XP Series IP Codec
XP-M100
Broadcast-Grade Quality for Every Stream
From Security to Surveillance and Beyond
Inquiries about Digital Video System Solutions
Download DatasheetKey features
- Equipped with Proprietary
H.264-Compatible Video Codec LSI- Achieves broadcast-quality performance with high image quality, low bit rate, and ultra-low latency*
- Supports H.264/AVC encoding and decoding
- Compatible with 1080i / 1080p* formats
- Dual Functionality:
Encoding and Decoding- Switchable between encoding and decoding modes
- Versatile Input/Output Interfaces
- Supports uncompressed video/audio via SDI and HDMI
- IP-based streaming supported
- Advanced IP Transmission Features
- SRT support enables high-quality video delivery even over IP networks
- Allows simultaneous transmission of multiple encoded streams (up to two)(Flexible combinations of unicast and multicast)
- Redundant transmission enabled through seamless protection*
- Compact 1U Half-Rack Size
- Up to two units can be mounted in a 1U rack using optional brackets
- Robust Design for Continuous Operation
- Designed for stable, long-term operation 24/7/365 continuous use
* Features marked with an asterisk are planned for future implementation.
Front/Rear Panel
Front/Rear Panel

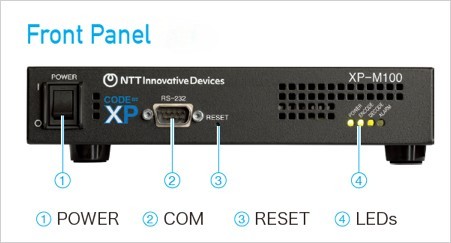

XP-M100 : Front panel
- POWER
- COM
- RESET
- LEDs

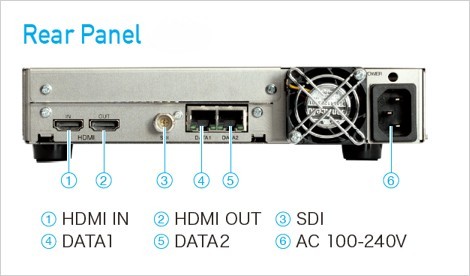

XP-M100 : Rear panel
- HDMI IN
- HDMI OUT
- SDI
- DATA1
- DATA2
- AC 100-240V
Specifications
| Category | Item | Specification |
|---|---|---|
| Video | Input/Output Interfaces |
SDI: BNC x 1 (0.8V p-p 75Ω SMPTE ST 292), HDMI (HDCP not supported) x1 |
| Video Compression | AVC/H.264: Profile: High, Level: 4.1/4.0 | |
| Video Format | AVC/H.264: 1080i (1920/1440 x 1080) @59.94Hz, 50Hz | |
| Delay Mode | Standard delay (approx. 800ms @1080i/59.94) | |
| Test Signal | Color bar | |
| Audio | Audio Input/Output |
SDI Embedded Audio: SMPTE ST 299, HDMI |
| Audio Compression | MPEG-1 L2, 2 channels (Stereo), up to 2 PES | |
| Ancillary Data | Ancillary Data | Not supported |
| Transport Stream |
Transport Stream Format | MPEG-2 TS (188 bytes) |
| Input/Output Interfaces |
IP: 100BASE-TX/1000BASE-T (RJ-45) x2 | |
| Maximum TS Rate | Encoder: 50 Mbps, Decoder: 80 Mbps | |
| Network | IP Stream Interfaces |
DATA1/DATA2: 100BASE-TX/1000BASE-T (RJ-45) *Shared with control port |
| Transmission Protocol |
RTP/UDP/IP Unicast/Multicast, SRT | |
| Network Functions | IPv4: NTP, DHCP, Ping | |
| Error Correction | FEC (SMPTE2022-1-2007/Pro-MPEG COP#3 R2), SRT | |
| Encryption | SRT AES encryption (AES-128, 192, 256) | |
| Other Functions | Other Functions: Encode mode/Decode mode switching, Preset function | |
| Control | Control Interfaces | Power ON/OFF key, RESET button, DATA1/DATA2: 100BASE-TX/1000BASE-T (RJ-45) *Shared with data port |
| Control Method | Web GUI | |
| Dimensions/Weight | W: 209 x H: 40 x D: 300 mm (excluding protrusions) / Less than 2.5 kg | |
| Power Supply | AC 100V-240V, 50/60Hz | |
| Power Consumption | Less than 60W | |
| Operating Environment *1 | -10℃ to 50℃ (excluding low-temperature startup *2), 20%-90% (non-condensing) | |
| Compliance | UL, CSA, CE, VCCI, FCC, ICES, ROHS, REACH, POPS, TSCA, China RoHS | |
| Option Name | Option Number | Model Name | Detail |
|---|---|---|---|
| Rackmount Kit | OP91 | XP-x100_OP_RK | Mount Kit for 1U Rack (Supports installing Max 2 Units into 1U Rack Size) |
Please consult our sales representative regarding the required options
*1 It is not the given devices of measures such as waterproofing, protection against dust, damage from salt breeze. Thus, life of equipment may shorten remarkably, and it is not possible for the normal movement security under using environmental condition.
*2 low-temperature = under 0 degrees Celsius
- Our company may change specifications and the appearance for improvement that are incidental to the product without providing prior notice. At the purchase and the use of the product, please confirm the latest information.
- Exporting our products or technologies may be subject to the Foreign Exchange and Foreign Trade Law of Japan and export control acts and regulations of other related countries.
- All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
