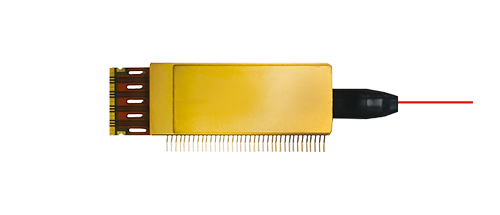

Ultra High Bandwidth Coherent Driver Modulator (UHB-CDM)High Speed Optical Modulator
A driver integrated modulator module for digital coherent optical communication using an InP modulator chip featuring high speed, low loss, and low drive voltage. Supports modulation speeds up to 140Gbaud based on OIF-HB-CDM-02.0 type 3 (Class80)
FEATURES
- Ultra high bandwidth utilizing novel InP modulator chip
- FPC RF interface based on type-3 of OIF-HB-CDM-02.0
- Supports baud rates up to 140GBd
- Low optical loss (insertion loss, modulation loss)
- Supports various modulation formats by combining with DSP
APPLICATIONS
- Metro/Long haul

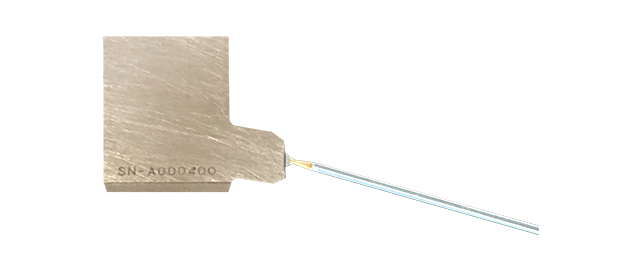

COSA2.0Coherent Optical Sub-Assembly
[ZR-ver./ NLHCS20A012-NNN, Metro-ver./ NLHCS20A014-NNN]
Silicon photonics based coherent optical modulator and receiver sub-assembly for 400G applications.
FEATURES
- Coherent optical components except laser source are integrated in a single Silicon photonics chip
- 400Gbps/λ 64GBd 16QAM, support 400ZR, Open ZR+ and Open ROADM
- Non-hermetic TEC-free packaging and simple assembly without any optical lens
- Package size: 13.5 x 10.5 x 2.2 mm, applicable to small form factor modules; OSFP and QSFP-DD-DCO
- Optical BGA package for Solder Reflow-able Assembly
APPLICATIONS
- 400Gbps Data Center and Data Center Interconnection : 400ZR/Open ZR+
- Metro 400 Gbps WDM systems : Open ROADM

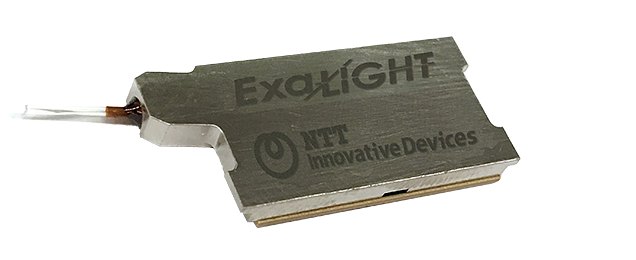

400G Coherent co-packageCoherent Co-Packaged Device
400G coherent co-packaged device integrated with DSP and Silicon Photonics coherent optical modulator and receiver.
FEATURES
- Both 400G DSP and COSA（based coherent optical modulator and receiver sub-assembly) are implemented into a SINGLE solder reflow-able optical BGA package
- The same functions and optimal tuned performances by combination of ExaSPEED 400-R and COSA2.0
- Smaller footprint, which reduces the assembly space down to roughly 2/3 of the discrete configuration
- Applicable to coherent small form-factor pluggable modules, such as QSFP-DD and OSFP
APPLICATIONS
- 400Gbps Data Center and Data Center Interconnection: 400ZR/Open ZR+
