PBC(S)/Polarization Rotator
PBC(S) : Polarization Beam Combiner (Splitter)
Polarization control PLC

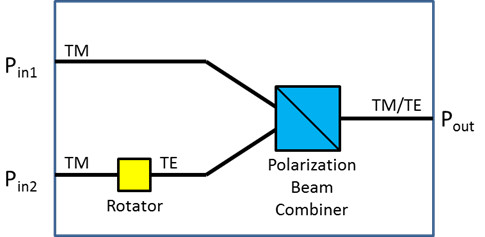

2X1 optical rotator and combiner : Integrate polarization rotator and PBC into one chip using highly reliable Silica-on-Si PLC technology.
FEATURES
- Very small temp. dependence of IL and PER.
- Very small wavelength dependence of IL and PER.
- High reliability and stability.
FUNCTION
SPECIFICATIONS
| Parameter | Performance |
|---|---|
| Insertion loss | ≤1.2dB |
| Polarization extinction ratio | ≥28dB |
Not include coupling loss.
Dual Polarization Optical HybridDigital Coherent Receiver PLC

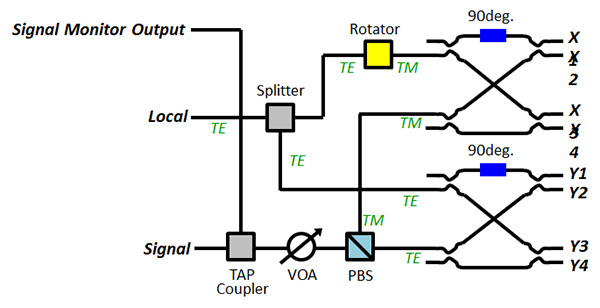

PLC-based PBS-integrated coherent mixer : Integrate PBS and VOA and two 90 degree optical hybrids into one chip using highly reliable Silica-on-Si PLC technology. (optional：Monita Port)
FEATURES
- Very small, low insertion loss and low phase difference.
- Very small temp. dependence of IL, PER and phase difference.
- Very small wavelength dependence of IL, PER and phase difference.
- High reliability and stability.
FUNCTION
SPECIFICATIONS
| Parameter | Performance |
|---|---|
| Phase difference | 90±5deg. |
| Signal insertion loss | ≤8.3dB |
| Local insertion loss | ≤10.2dB |
| Polarization extinction ratio | ≥25dB |
Not include coupling loss. Include 8% Tap loss.

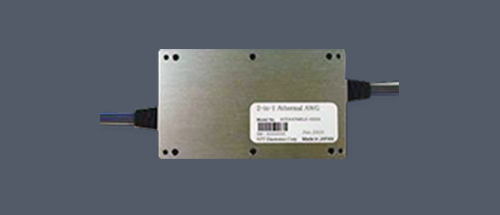

Athermal AWGAWG Multi / Demultiplexer
AWG (Arrayed Waveguide Grating) is a multi-port wavelength filter that has a large number of waveguides in an array. Due to the interference of the multi-beams passed through these waveguides, an extremely high extinction ratio can be realized like a Bragg Grating.
On the other hand, because our AWG is made with PLC technology, it has high reliability and satisfies Telcordia GR-1209 and GR-1221.
Therefore the AWG is widely used in large capacity optical transmission systems as an optical multi / demultiplexer that bundles and separates optical signals of different wavelength.
In a lasted DWDM (Dense Wavelength Divission Multiplexing) system, each component must have high optical wavelength stability.
NTT Innovative Devices' athermal AWG achieves high optical wavelength stability in a very compact size without a temperature controller.
FEATURES
- Customizable channel spacing such as 50, 100 200 GHz
- Customizable channel count
- Low insertion Loss
- Wide flat top filter shape
- Small Chip size
- High reliability due to silica-based planar lightwave circuits
- Available 2-in-1 configuration
PRODUCTS LINE UP
- 100GHz Athermal AWG (2 in 1) module
- 75GHz Athermal AWG (2 in 1) module
- 50GHz Athermal AWG (2 in 1) module

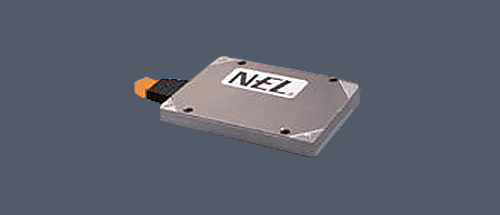

Thermal AWGAWG Multi / Demultiplexer
AWG (Arrayed Waveguide Grating) wavelength multi / demultiplexer combines and splits optical signals of different wavelengths for use in WDM system. It consists of temperature control for the precise wavelength stability of the filter.
The heart of the device, the AWG, has a number of arrayed channel waveguides that offers high wavelength resolution, thus attaining narrow wavelength channel spacings such as 0.8nm in ITU channel allocation. The device offers long-term reliability because it employs the PLC technology, which passes GR-1209-CORE and GR-1221-CORE.
FEATURES
- Dence and accurate channel spacing
- Large number of channel up to 128
- Polarization insensitive
- Passed GR-1209-CORE and GR-1221-CORE
SPECIFICATIONS
| Parameter | Gauss-type | Flat-type |
|---|---|---|
| Optical frequency | C- or L-band | |
| Channel spacing | 100 GHz | |
| Channel number | 40 | |
| Insertion loss | < 3.5 dB | < 5.5 dB |
| Insertion loss Uniformity | < 1.5 dB | |
| 1 dB bandwidth | > 25% of channel spacing | > 50% of channel spacing |
| 3 dB bandwidth | > 50% of channel spacing | > 75% of channel spacing |
| Polarization dependent loss | < 0.5 dB | |
| Adjacent crosstalk | < -23 dB | |
| Total crosstalk | < -20 dB | |

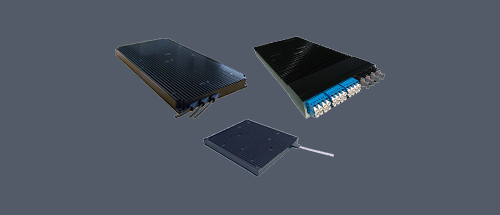

MxN Multicast SwitchThermo-optic Switches / Attenuators
Multicast/aggregation switch can connect any wavelength channel of TRx to any direction without wavelength contention (CDC: Colorless, Directionless, and Contentionless).
PLC-based multicast switch (MCS) is promising solution to realize CDC-less function with reasonable cost.
FEATURES
- Compact 1-RU height with dual configuration
- Small wavelength dependence
- High durability and stability
PRODUCTS LINE UP
- 16x12 MCS
- 8x16 MCS
- 8x4 MCS, 4x4 MCS

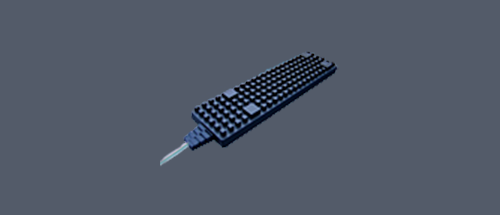

1xN Optical SwitchThermo-optic Switches / Attenuators
PLC* based 1xN optical switch provides a compact, stable and highly reliable solution for optical switching. Its highly reliable and high speed nature is applicable to the multiple point power monitoring by sharing single optical channel monitor.
*PLC: Planar Lightwave Circuit
FEATURES
- High reliability
- Low loss and high extinction ratio
- Solid-state switch (no mechanical moving parts)
- High-speed switching at milliseconds
FUNCTION
SPECIFICATIONS
| Parameter | 1 x 8 | 1 x 128 |
|---|---|---|
| Operating wavelength | C-band or L-band | |
| Insertion Loss | < 3 dB | < 3.5 dB |
| Insertion Loss Uniformity | < 1 dB | |
| PDL | < 0.4 dB | |
| Extinction Ratio | > 40 dB | |
| Return Loss | > 40 dB | |
| Response Time (10%/90%) | < 3 ms | |
| Total Power Consumption | < 4.5 W | < 9 W |
| Module Size | 140 x 38 x 11.5 mm³ | 160 x 110 x 14 mm³ |

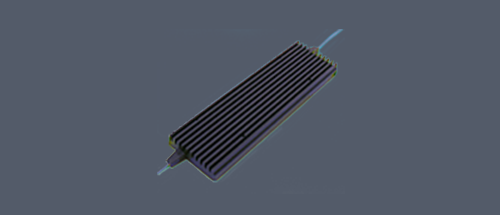

NxN Non-blocking Optical Matrix SwitchThermo-optic Switches / Attenuators
NxN Non-blocking Optical Matrix Switch: PLC* based NxN optical matrix switch provides a compact, stable and reliable solution for optical cross connect. The NxN matrix switch has a non-blocking configulation.
*PLC: Planar Lightwave Circuit
FEATURES
- High reliability
- Low loss and high extinction ratio
- Solid-state switch (no mechanical moving parts)
- High-speed switching at milliseconds

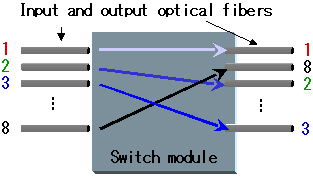

FUNCTION
SPECIFICATIONS
| Parameter | 8 x 8 | 16 x 16 |
|---|---|---|
| Operating wavelength | C-band or L-band | |
| Insertion Loss | < 3.5 dB | < 5 dB |
| Insertion Loss Uniformity | < 1 dB | |
| PDL | < 0.5 dB | |
| Extinction Ratio | > 40 dB | |
| Return Loss | > 40 dB | |
| Response Time (10%/90%) | < 3 ms | |
| Total Power Consumption | < 4.5 W | < 9 W |
| Module Size | 150 x 45 x 12.5 mm³ | 140 x 106.5 x 14 mm³ |

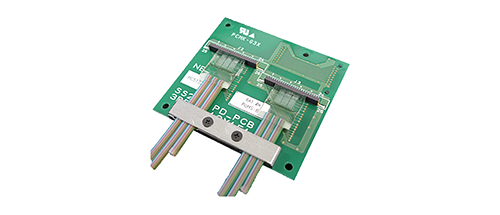

32ch integrated TAP-PDSub assembly for optical power monitor
A fiber array assembly that incorporates TAP-PD. A power monitor function can be easily added to a multi-channel optical communication device.
FEATURES
- Small power monitor array that supports up to 32 channels
- Uniform power monitor performance over the entire communication wavelength band (C band)
- Has a track record of introducing many fields

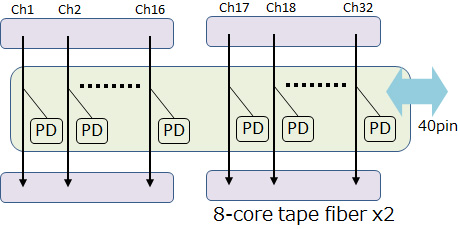

BLOCK DIAGRAM
SPECIFICATIONS
- Electrical IF：LSHM-120-02.5-L-DV-A-N-K-TR [samtec]
- Optical IF: 8-core tape fiber
- Size: 50mm×46mm
- Fiber length: T.B.D.
| Parameter | Value | Comment |
|---|---|---|
| Operation Temperature range | -5 to 75 degC | |
| Operation wavelength | C-band | |
| PD responsivity | 20-40 mA/W | -5 bias |
| Insertion Loss | 0.8 dB | At 1550nm |
| Wavelength Dependent Loss | 0.1 dB | |
| Polarization Dependent Loss | 0.1 dB | At 1550nm |
| Temperature Dependent Loss | 0.2 dB | At 1550nm |
| Total Crosstalk | 31 dB | |
| PD Dark Current | 10 nA | At 75 degC、-5bias |
