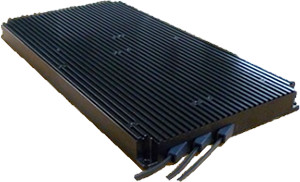

8x16 Multicast Switch
Two MxN switch units (add and drop) are integrated in one module with control circuit.
Switches, splitters, and waveguids are high density integrated by using highly reliable silica PLC technology.
Inquiries about Photonics ProductsFEATURES
- Compact 1-RU height with dual configuration
- Wavelength independence
- High durability and stability
SPECIFICATIONS
| Parameter | Performances |
|---|---|
| Operating wavelength | C-band or L-band |
| Insertion Loss | < 16.5 dB |
| PDL | < 0.5 dB |
| Cumulative Crosstalk | > 30 dB |
| Response Time | < 5 ms |
| Total Power Consumption | < 16 W |
| Module Size | 230 x 120 x 16 mm |
